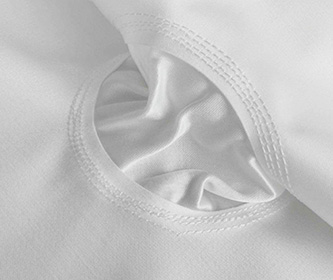

Patented filter presses cloth edges are well treated to increase the fastness and sealing performance and reduce the chance of leaking issues during filtration. The special edges treatment can also help to reduce the chance of adhesion between cloth and plate, which will make the washing easier.

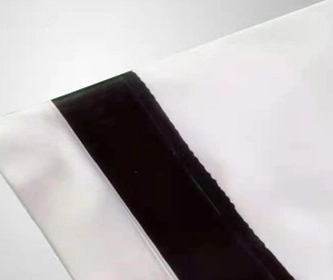

Vulcanized filter presses cloth edge is strong enough to bear the full pressure from machine. Vulcanization edge thickness is about 1-2mm and has high elasticity and good recovery performance that ensures the sealing performance during filtration.

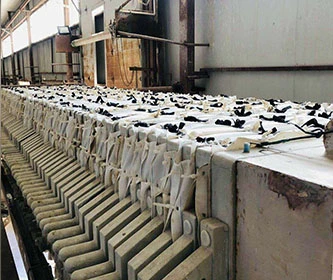

Filter press cloth has a wide range of application, such as sludge dewatering, chemical, metallurgy etc.
High breaking strength, free from stretch issue, high dimensional stability.
Ultrasonic edge sealing process to avoid fraying edges.
Super smooth surface makes a easier cake release and washing.
High filtration accuracy.
PP, PET.
Choose a suitable filter cloth based on the filter condition.
Elongation control.
Excellent press cloth operation cycle, decrease your total cost of ownership.

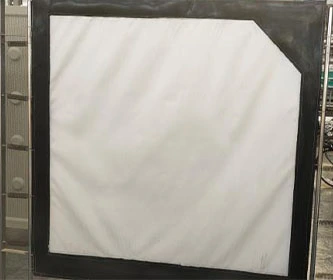

Edge coating to prevent leakage.

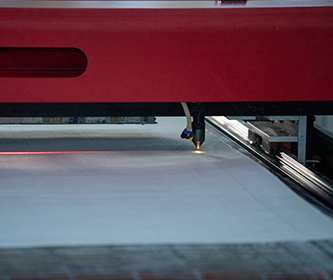

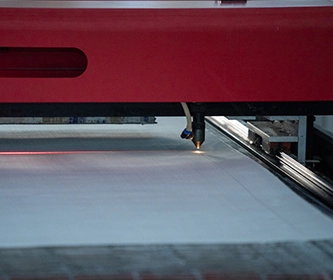

Ultrasound cut with edge sealing.
Gule coating to protect the stitching.
Various types of clipper joints.
Material | Type | Air Permeability(L/m2.s) | Thickness(mm) | Weight(g/m2) |
±10% | ±5% | |||
Polyamide | B6533 | 300-400 | 0.85 | 620 |
B3015 | 1000±150 | 0.55 | 450 | |
PP | BL7160 | 15-20 | 1.1 | 610 |
305B | 70±14 | 1.15 | 670 | |
B3818 | 900±100 | 0.63 | 350 | |
PET | B0303 | 0-3 | 0.63 | 650 |
B758 | 20±5 | 0.57 | 350 |
